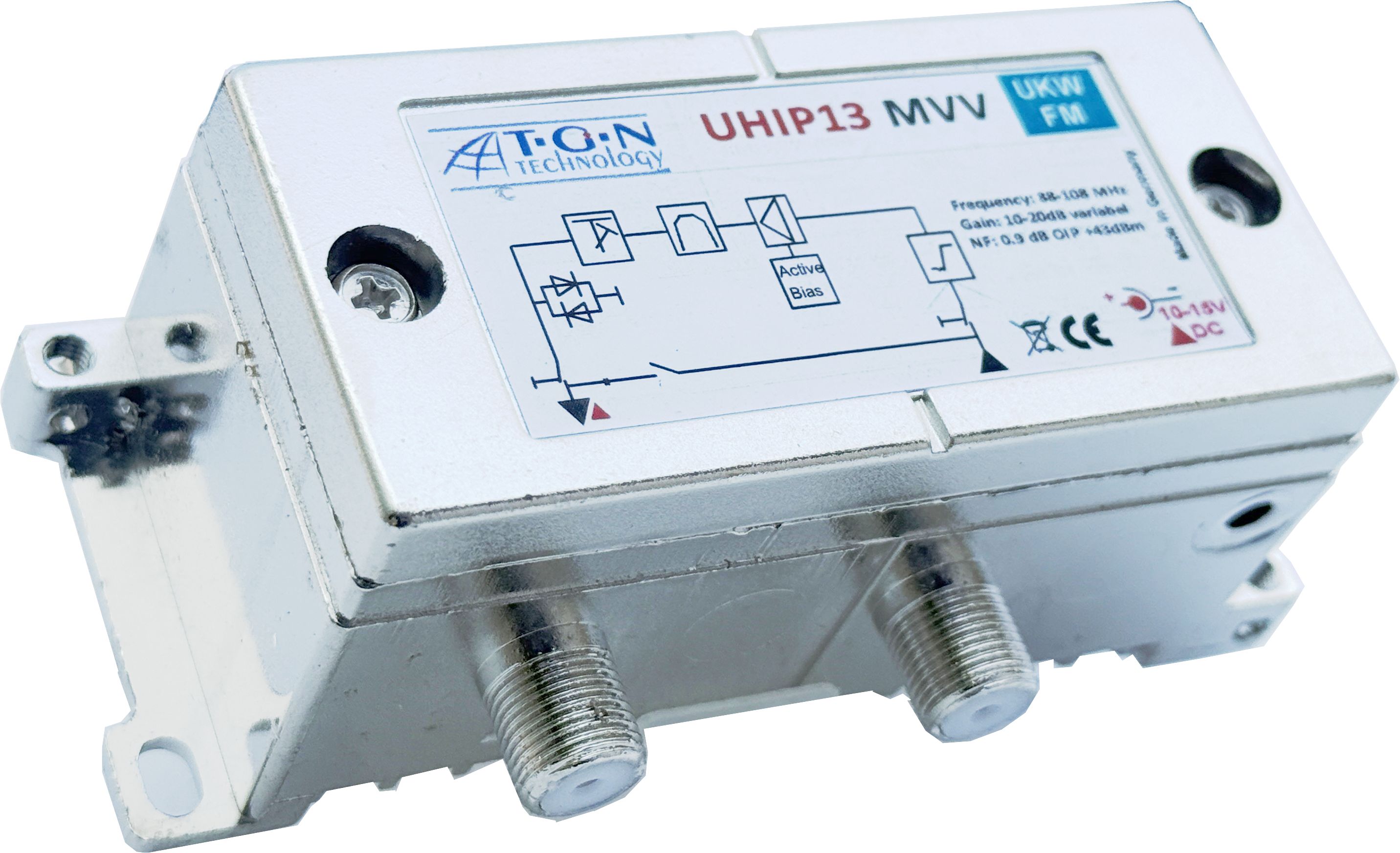

Ultra High IP UKW/FM Preamplifier
Ultra High IP UKW/FM Preamplifier
Ultra High IP UKW/FM Preamplifier

Ultra High IP UKW/FM Preamplifier

Product No.:
90200140
1 Week 1 Week (abroad may vary)
165,00 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Price offer
Ask about product
Description

The most fexible super Low Noise amplifier as a front-end for FM-Radio reception with by pass function
  • Super Low Noise and high intercept point +43dBm
  • Ultra high dynamic range
  • Excellent reception in low coverage area LRR (Long Range Reception)
  • No interference from strong local stations
  • High selective filter against interference
  • Low Noise Figure 0.90 dB NF
  • Remote power supply via coaxial cable
Specifications FM PreAmp
  • Frequency 88-108 MHz
  • Gain 10-16 dB variabel
  • Noise figure 0,30 dB
  • 3dB BW typ MHz 70 MHz
  • Max. Outputlevel 119dB/µV
  • Input Return loss min -12dB
  • Output Return loss min -16dB
  • Sttenuation
    • FM   -28dB
    • UHF -45dB
  • Connectors F-F Male
  • DC supply via Coaxcabel 10V/10 dB 16V/16 dB @200mA
  • Dimensions 99X39X40 mm
