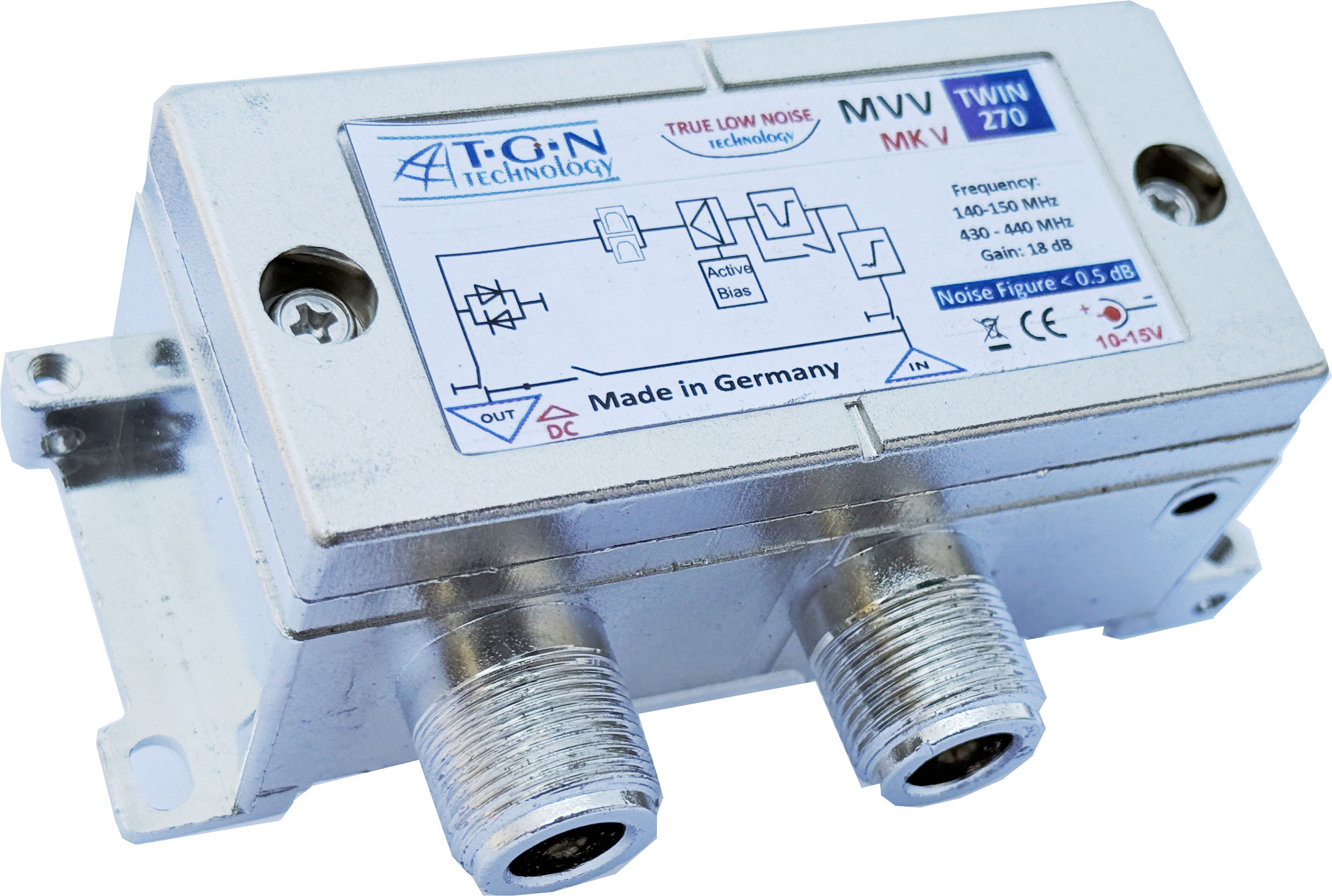

Mastvorverstärker TWIN270 MK V

Product No.:
10501
appr.. 6 weeks appr.. 6 weeks (abroad may vary)
You do not have permission to view the prices

Add to wish list
Ask about product
Specifications
  • Frequency range 144-148 & 430-440 MHz

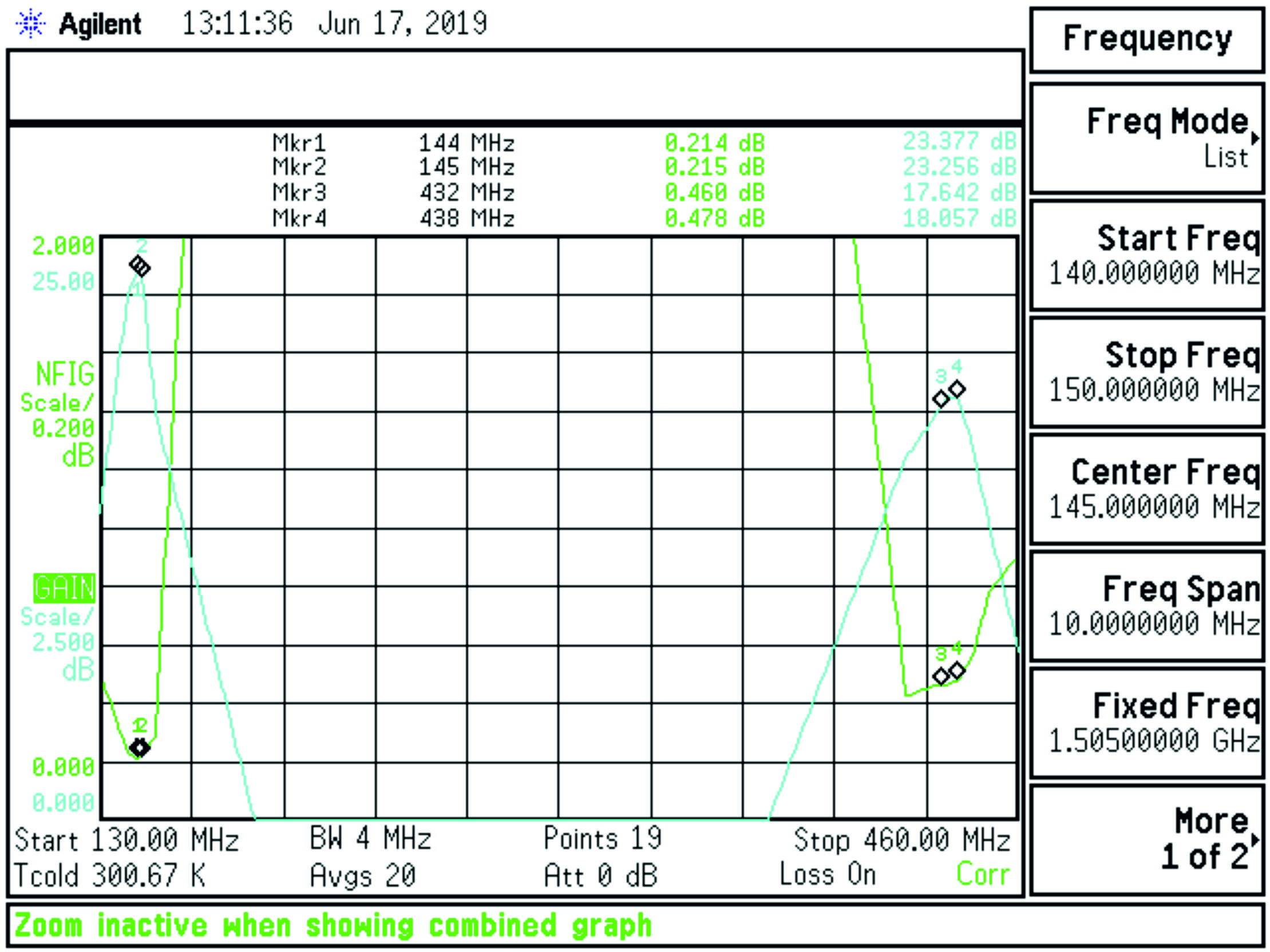

  • Nose Figure 0,35 dB@2m, 0,5@70cm
  • Gain 21 dB 2m,18dB 70cm
  • Switching capacity VOX 100 Watt
  • Transfer power 700 Watt 500W@70cm

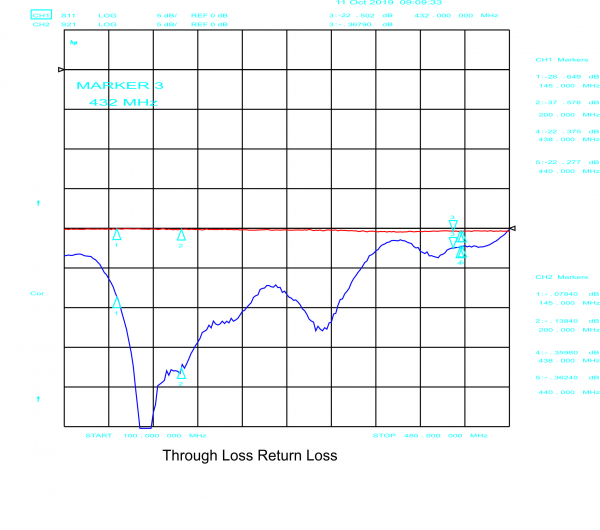

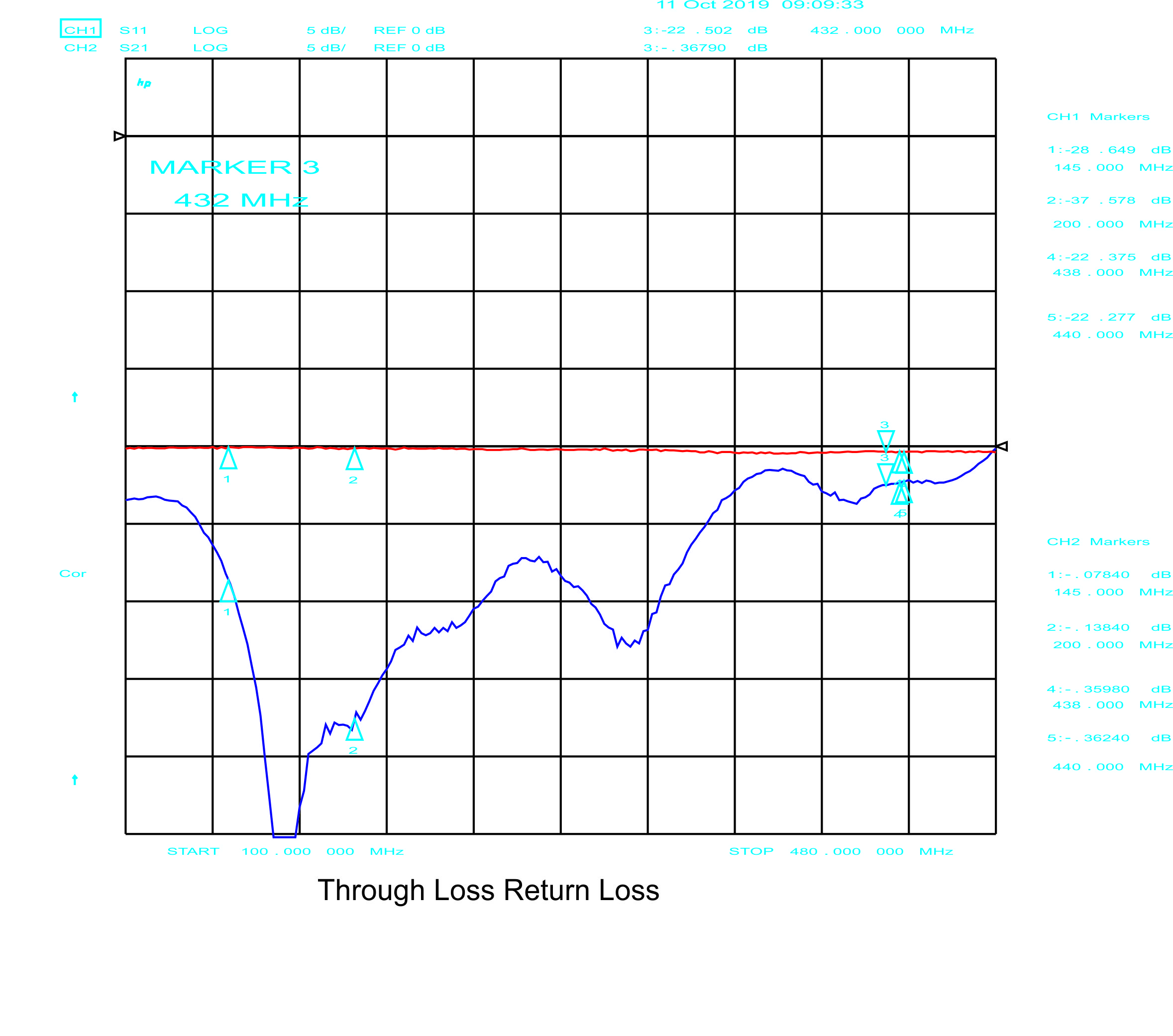

  • Insertion loss  S21 0,1 dB 0,3 dB@70cm
  • Return loss pass  S11 28 dB 22dB@70cm
  • R Return loss amp  S11 6 dB
  • Return loss output  S22 16 dB
  • O-IP3 +38 dBm
  • I-IP3m+15 dBm
  • DC supply 10-18V DC@180 mA
