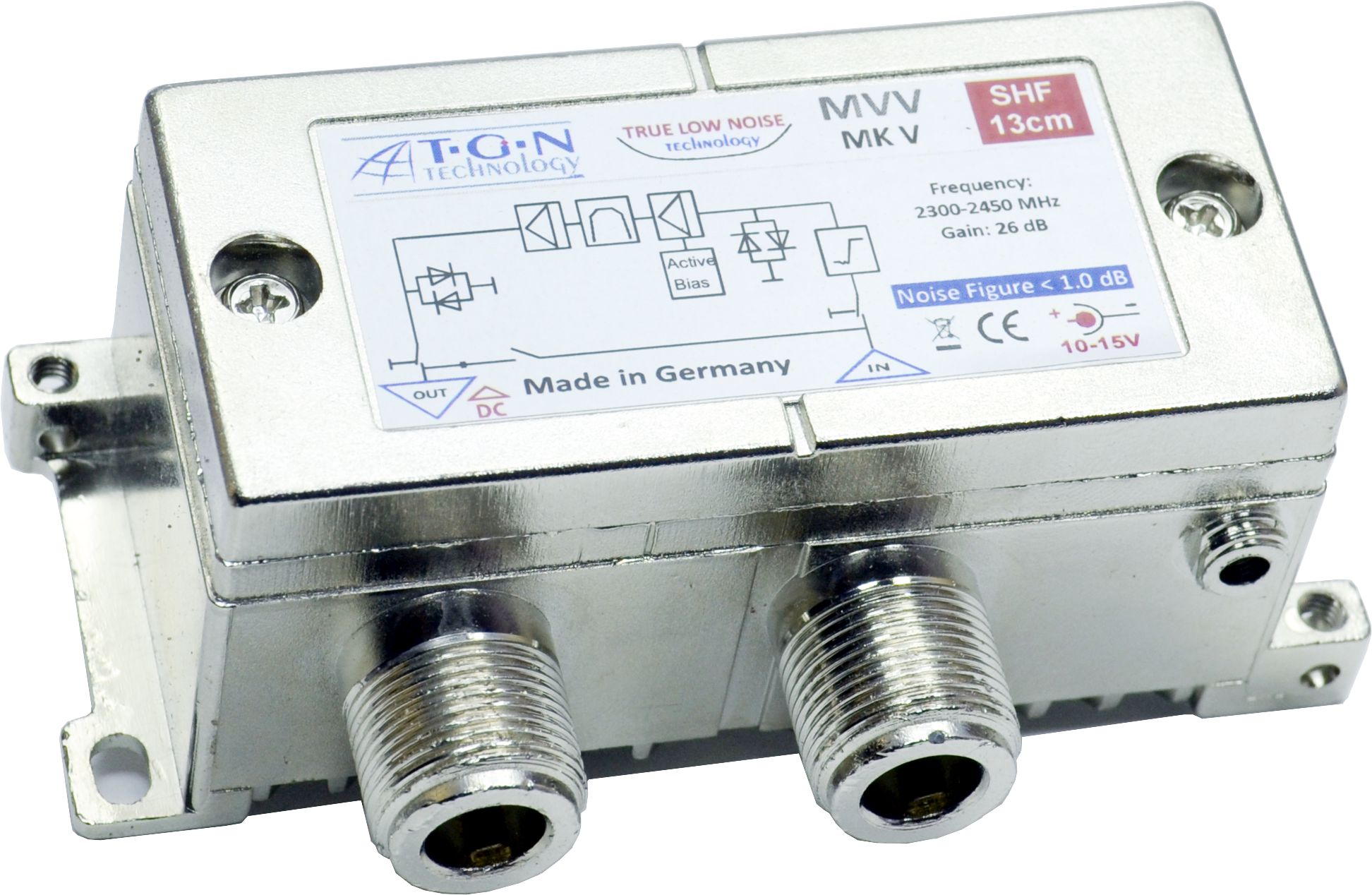

Mastvorverstärker 13cm MK V

Product No.:
10507
2 Weeks 2 Weeks (abroad may vary)
You do not have permission to view the prices

Add to wish list
Ask about product
Specifications
  • Frequency range 2300-2450 MHz

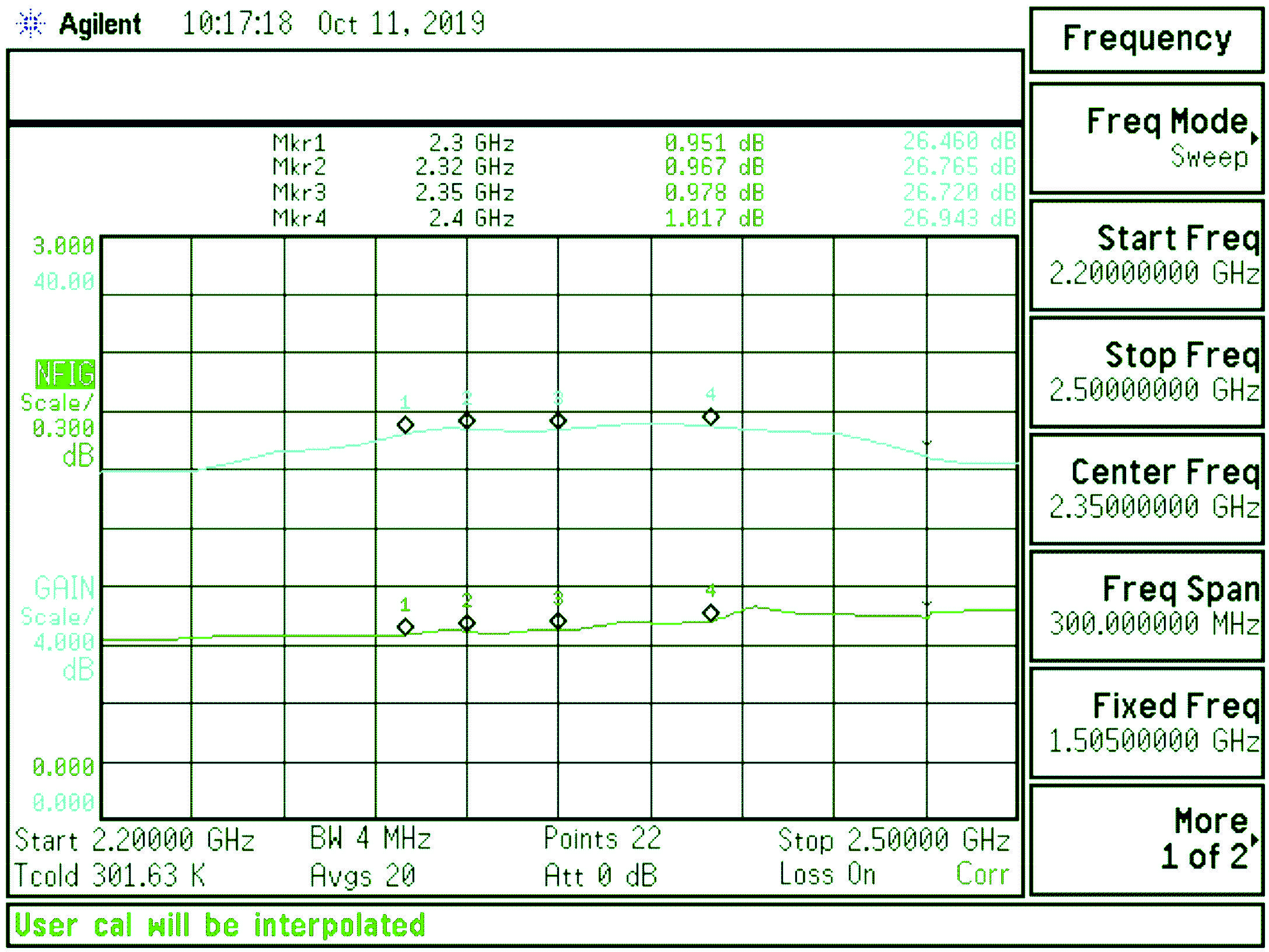

  • Nose Figure 1,0 dB

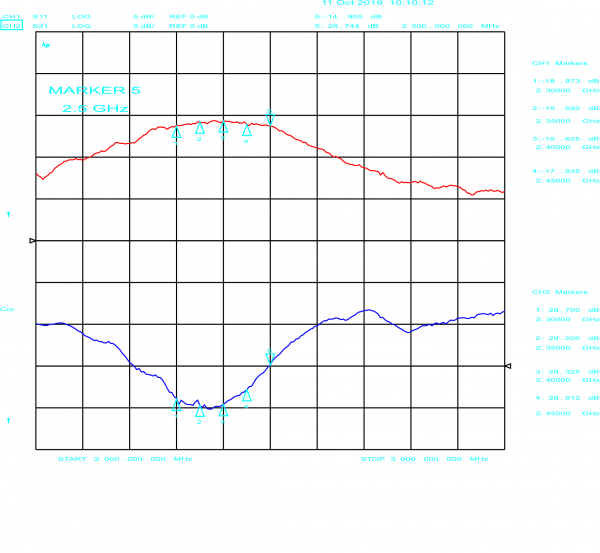

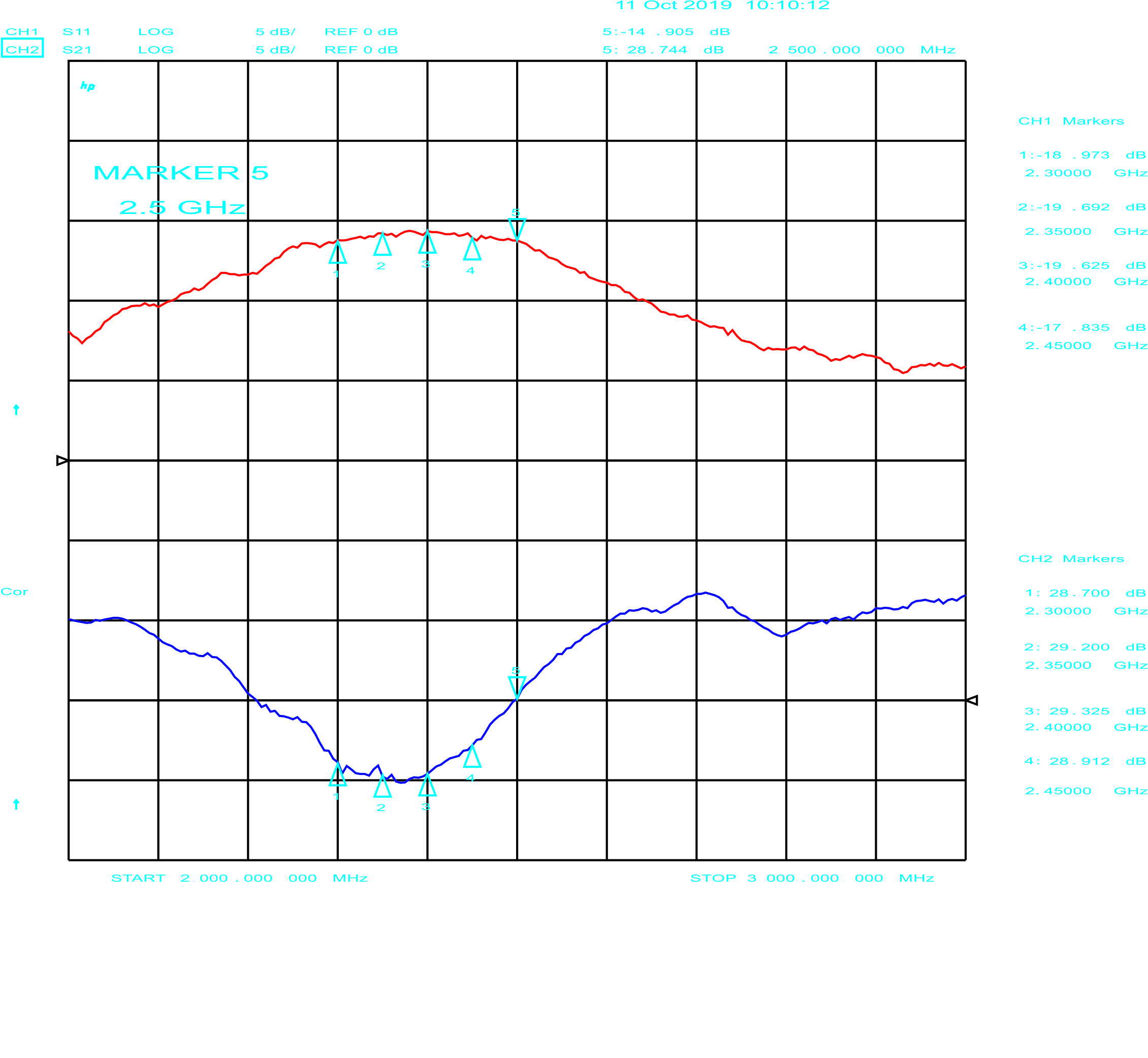

  • Gain 26 dB
  • Switching capacity VOX 10 Watt
  • Transfer power 50 Watt

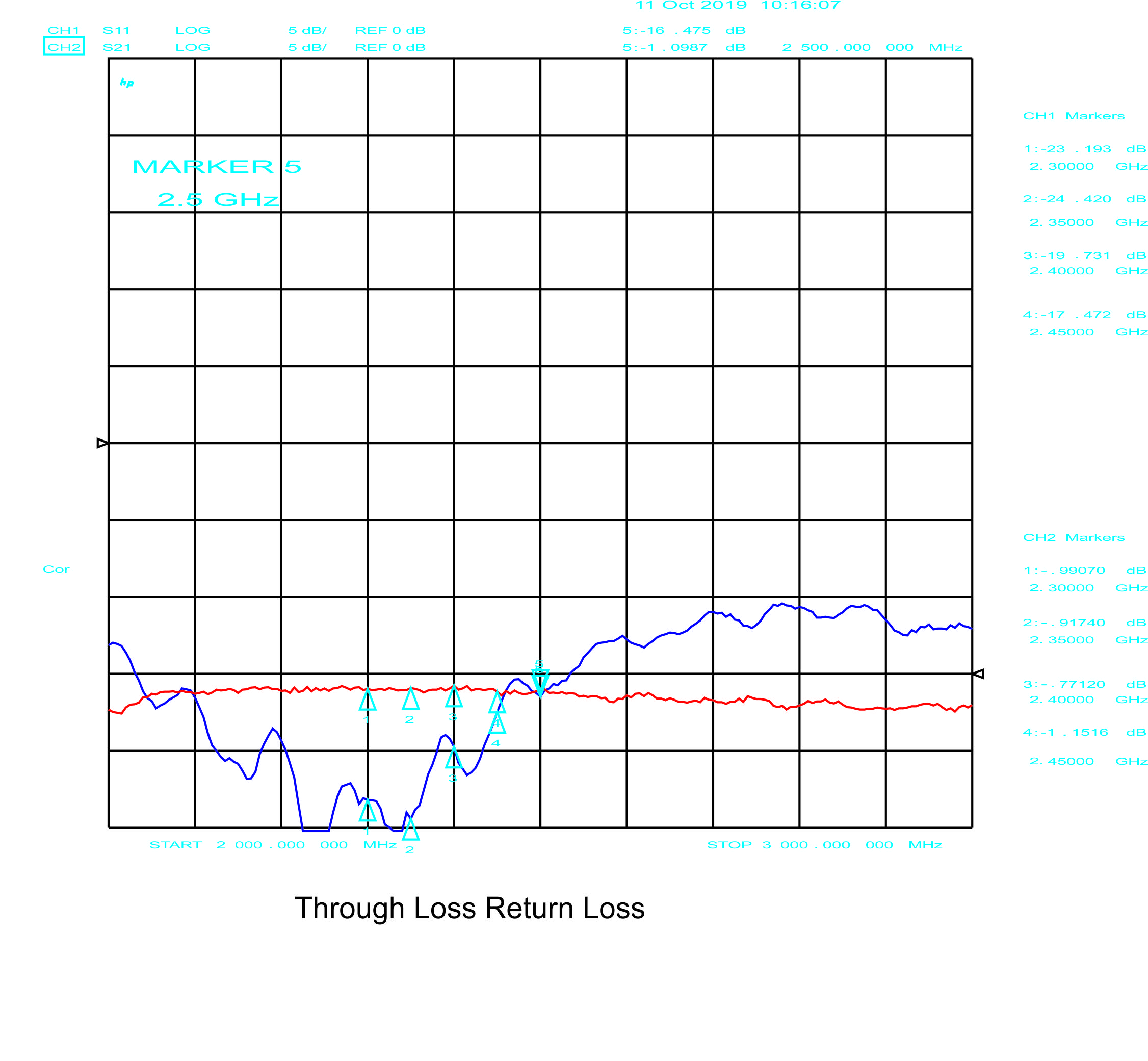

  • Insertion loss  S21 0,9 dB
  • Return loss pass  S11 18 dB
  • R Return loss amp  S11 12 dB
  • Return loss output  S22 18 dB
  • O-IP3 +23 dBm
  • I-IP3 -3 dBm
  • DC supply 10-16V DC@180 mA
