Mast Amplifier TRI

Product No.:
10516
2 Weeks 2 Weeks (abroad may vary)
from 195,00 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Specifications
  • Frequency range 144-148, 430-440  + 23cm each single Bandfilter

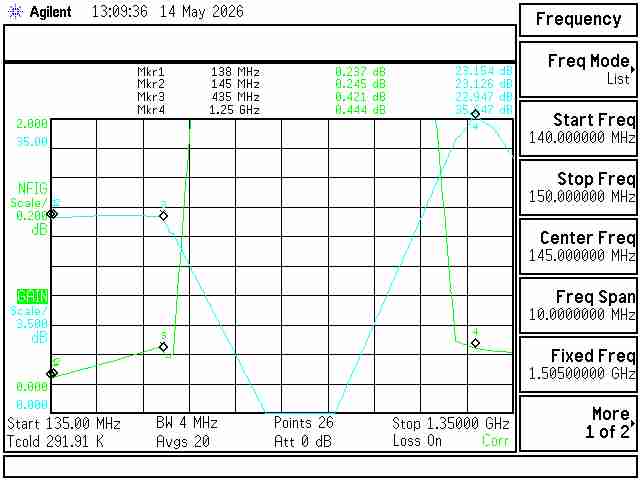

  • Nose Figure 0,3 dB-0,7dB
  • Gain 1
  • Switching capacity VOX 10 Watt
  • Transfer power 100 Watt

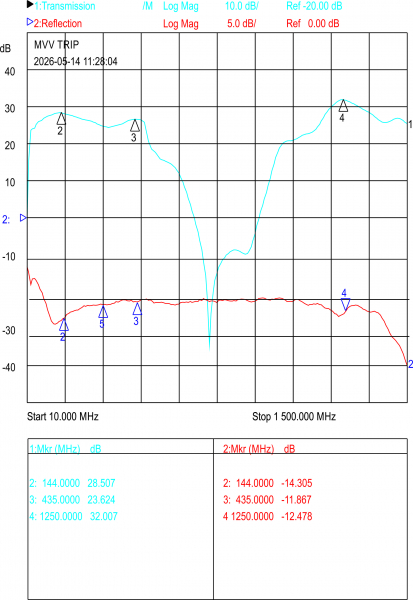

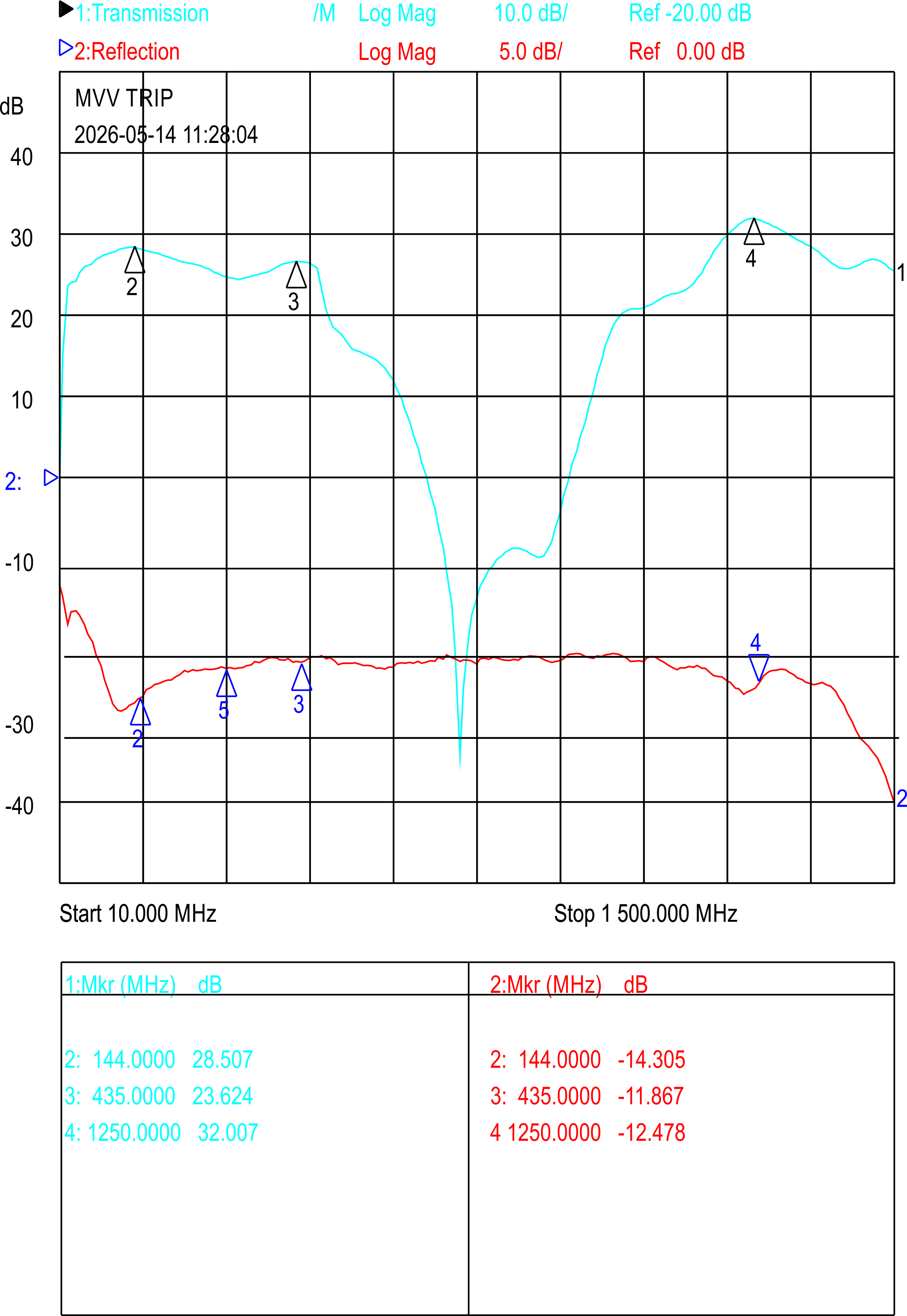

  • Insertion loss  S21 0.1 dB 0.15 dB@70cm, 0.35dB @23cm
  • Return loss pass  S11 28 dB 22dB@70cm, 18 db @23cm
  • R Return loss amp  S11 13 dB, 16dB@70cm , 16 dB @23cm
  • Return loss output  S22 18 dB
  • O-IP3 +38 dBm
  • I-IP3m+16 dBm
  • DC supply 10-18V DC@240 mA
  • Dimension 99x40x55 mm
