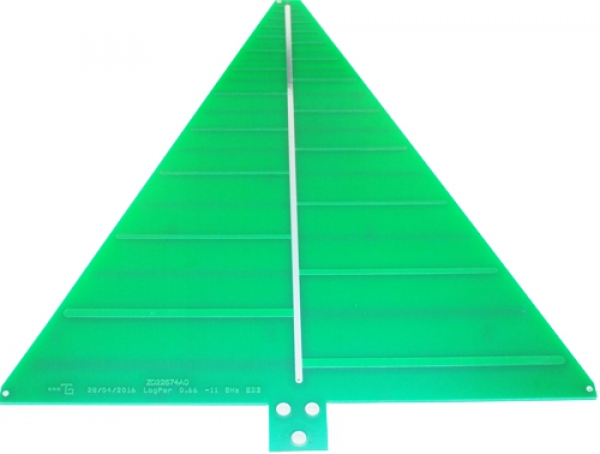

LogPer Antenna Ultra Broadband Antenna 0.66 - 11 GHz
LogPer Antenna Ultra Broadband Antenna 0.66 - 11 GHz
LogPer Antenna Ultra Broadband Antenna 0.66 - 11 GHz

LogPer Antenna Ultra Broadband Antenna 0.66 - 11 GHz

Product No.:
527
1 Week 1 Week (abroad may vary)
You do not have permission to view the prices

Add to wish list
Ask about product
Description
Antenna built for the UHF-Band to KU- Band range.
The broadband antenna was designed with the latest CAD tools. Thus there exists a universal antenna for different applications. To be ideal for measuring of the influence to human body in homes.
The Logper 066-11 enables you to receive LTE 4G&5G - ISM-the new wireless 5.8 GHz up to Ku-Band.

Fields of application
  • Lab measurements
  • Production field
  • Unwanted spectrum measurements
  • Radiation control of radio systems
  • Broadband feed for parabolic dishes
  • LTE,GSM, WLAN, Bluetooth...
Specifications
  • Frequency range: 0.66-11 GHz
  • Gain: 5-8dBi
  • Impedance: 50 ohm
  • Return loss: -11 dB
  • Dimensions: H=205mm; B=172mm, D=8 mm
