PreAmp Sequenzer PAS 500

Product No.:
90301
2 Weeks 2 Weeks (abroad may vary)
98,00 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description
Solid control unit for all commercially available mast preamplifiers with remote power supply via the output, especially the TGN MVV amplifier series!
The PAS 500 sequencer inserts the operating voltage into the output line from the mast preamplifier. Is controlled by the PTT output of the transceiver and switches the PA with a delay.
Particularly is the extremely low loss and the stable cast housing as well as the flexible application area.


Specifications
  • Frequency range  50 ... 5000 MHz
  • max. power 750 W

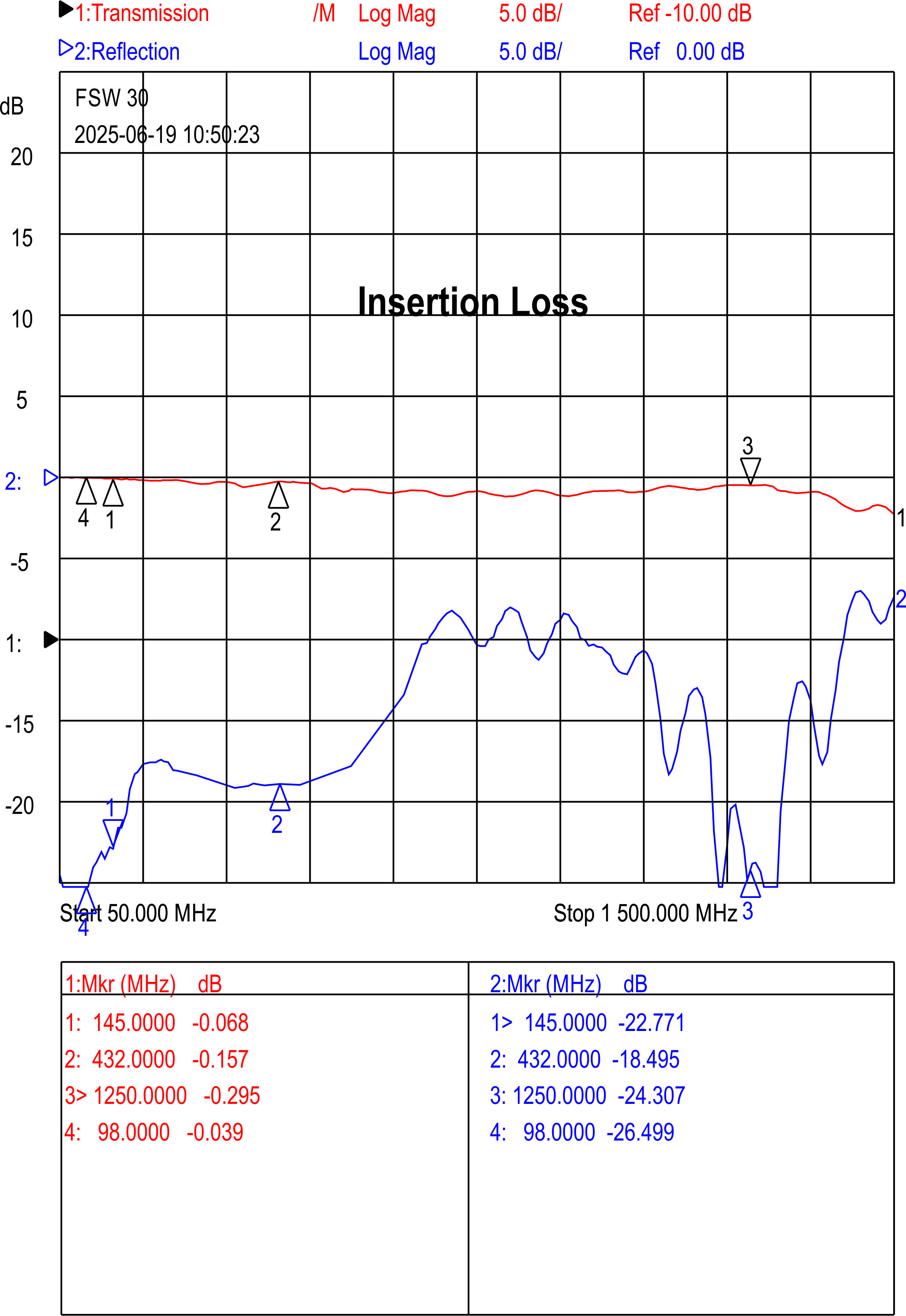

  • Return loss > -24 dB
  • Insertion loss <0.1 dB
  • PTT to GND
  • Voltage  +10 ..24V DC
  • Current  max 500 mA
  • DC-in jack hollow jack 2.1 mm
  • Input  N connector
  • Output  N connector
  • Case  Zinc die-cast housing
  • Dimensions in mm  95X40X40 without connectors
